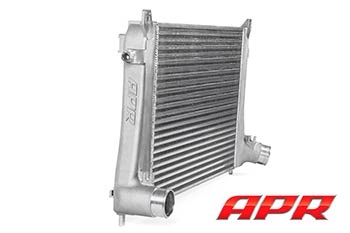

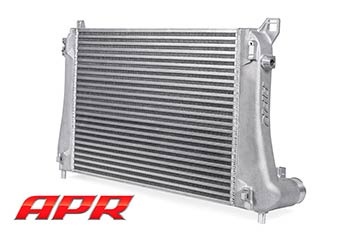

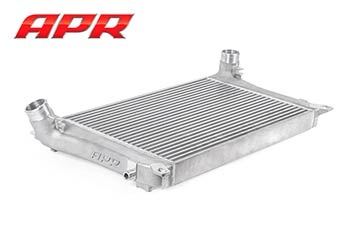

The APR Intercooler System is a OEM-location upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is a direct bolt-on upgrade that requires no trimming and is recommended at every stage of performance.

Design

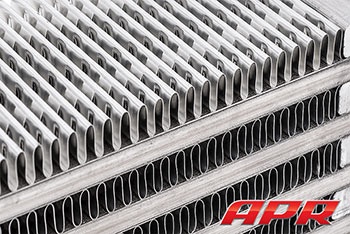

APR pioneered the OEM-location direct-replacement intercooler system in 2006. Unfortunately, to the untrained eye, many intercooler designs appear the same. However, effectiveness of the system and overall performance are greatly determined by several key metrics. Alloy selection, end tank design, construction type, fin style, fin density and overall core dimensions must be analyzed and balanced accordingly to deliver class-leading performance. While the OEM's goal is to create a lightweight, easy to manufacture and inexpensive to produce, cross-platform design capable of supporting factory power levels, APR's intercooler must be capable of supporting more than double the factory output. Achieving this goal took a multi-step approach focused around intercooler core selection, end tank design and install location.

Testing

Internally APR conducted a multitude of tests while choosing the appropriate intercooler core and end tank design. Thermocouples were placed at the top and bottom of the core to measure cooling effectiveness and cooling distribution across the entire unit. Pressure transducers were placed at the inlet and outlet of the intercooler to determine pressure loss across the various units. With this information, APR's engineers specified the appropriate intercooler core type, dimensions, cooling fin density and made the necessary design changes to the end tanks to ensure full utilization of the entire core.

The end result was development of a system that's much more effective at cooling compared to the factory GTI and factory Golf R intercooler system. Effectiveness is measured as (Intercooler Inlet Temp - Intercooler Outlet Temp) / Intercooler Inlet Temp. The APR Intercooler system's effectiveness under the most demanding situations was between 82-83% while the factory GTI struggled at 60% and the factory Golf R at 65%.
