The APR 2.0 TFSI Valve Lift ECU Upgrade is an expertly recalibrated engine control strategy that remaps the boost pressure, timing and air fuel ratios to provide smooth and reliable power as if intended by the OEM. APR's ECU Upgrade is developed to work within the OEM and Tier 1 Supplier specifications for engine component stress tolerances and performance specifications. APR's ECU Upgrades are available in octane specific versions to allow you to take full advantage of the fuel quality available in your area. APR's patented EMCS functionality puts the control of the engine's operation at your finger tips and allows for additional features and options to be installed to your OEM ECU.

Stage I ECU Upgrade

Not only does our Stage I ECU Upgrade give you higher peak numbers of 234 horsepower and 333lb-ft. of torque, but also gains of up to 40 horsepower and 71lb-ft are available throughout the power band! APR's ECU Upgrade is the best power per dollar modification for the new 2.0 TFSI Valve Lift and gives it just the extra edge these cars lack from the factory without pushing the limits. With factory like smoothness and drivability APR's ECU Upgrade will fill the void in an otherwise excellent car..

Stage I ECU Upgrade

• Free Trial Software
• Calibrations: Stock, 91 Octane, 93 Octane, 100 Octane and Valet
• ROW Calibrations Stock, 95 RON, 98 RON, 104 RON and Valet
• Required Hardware: None to Meet Advertised Results

Stage II ECU Upgrade

• Free Trial Software
• Upgrade Incentives: Existing APR ECU Upgraded Customers may Upgrade for Free
• Calibrations: Stock, 91 Octane, 93 Octane, 100 Octane and Valet
• ROW Calibrations Stock, 95 RON, 98 RON, 104 RON and Valet
• Required Hardware: APR 3" Downpipe or High Flow Catalyst/Testpipe

NOTE Do not be fooled by claims from lesser tuners, a DSG reflash IS NOT Required to achieve the advertised power claims with an APR ECU Upgrade.

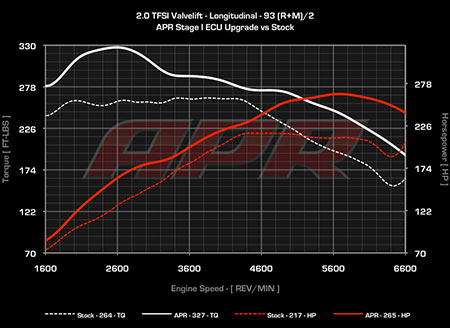

APR Stage I ECU Upgrade Calibration Report

APR Stage II ECU Upgrade Calibration Report

North American Application Guide

Program Switching Technology

• For a total of 2 programs (i.e. - Stock and Chipped) - $149
• For a total of 3 programs - $219
• For a total of 4 programs - $289

Other Available Options

• Security Lockout - $59
• Fault Code Erase/Throttle Body Alignment (FCE/TBA) - $59
• Anti-Theft System - $199

EMCS

EMCS is APR's revolutionary patented Enhanced Modular Chipping System. EMCS is an industry leading technology that brings many new features to the automotive enthusiast. This technology was developed exclusively by Audi Performance & Racing, LLC and demonstrates APR's continued commitment to lead the industry with the most technologically advanced products available.

Want chipped mode? Want to be able to switch back to your stock settings? Want a race mode to run 100 octane fuel at the track? How about a valet mode that limits power? EMCS is the lone technology on the market that can give you all of these options. No changing of the chip or ECU is required. These programs are available at the touch of a button.

Other companies have attempted to imitate EMCS with clumsy external switching devices that only replace portions of a "base" calibration. EMCS is still the only Bosch Motronic Engine Management System enhancement that gives the ECU the ability to completely rewrite the entire operating map data when selecting different programming options. This allows for completely new and independent calibrations for each program selected giving you the best, most powerful and complete Stock Modes, 91, 93 and 100 octane Performance Modes and Valet Modes.

APR's EMCS features and program modes are activated via your OEM cruise control buttons for ease of use and stealth. Your cruise control will continue to function as normal, but will give you the ability to scroll through the programs you have purchased with your APR ECU Upgrade. The procedure is simple and involves only two steps.

How EMCS Works

Step 1
Press and hold the "set" button on your cruise control. After approximately five seconds, the "check engine" light on your dash will begin to blink once per second. This will tell you that you are activating program one. This blinking sequence will continue for approximately five seconds.

After this five second interval, the "check engine" light will begin blinking twice per second. This will indicate that you have activated the second program. This process is continued to access any remaining programs you may have purchased. (three blinks = program three, four blinks = program four).

Step 2
Once you have activated the desired program, simply release the "set" button. The "check engine" light will stop flashing. Turn the ignition key off for 10 seconds, turn the key back on, and you will be locked in that program until you change it again.

It's that simple. Check out this video demo of the EMCS Program Switching Walkthrough

Available Features

APR's EMCS is a truly modular system that allows for future enhancements and features to be added as they are developed without the need for additional hardware. EMCS makes the following advanced features possible:

• Program Switching Enables you to swap between two or more engine programs using the cruise control stalk. All cars have stock and standard chipped program versions available. Valet, race-gas, and other specialty programs are available for most models.
• Fault Code Erase/Throttle Body Alignment (FCE/TBA) Fault Code Erase allows you to erase and reset engine related trouble codes without having to use a specialty tool. Throttle Body Alignment allows you to manually perform throttle-body adaptation.
• Security Lockout Prevents unauthorized personnel from accessing EMCS functions. The user may select any 2 to 4 digit security code. The security code is entered using the cruise control buttons.
• Anti-Theft You can render your car immobile to thieves, even if there is an attempt to start the car with your own key! For more information about Anti-Theft, click here.

DirectPort Programming

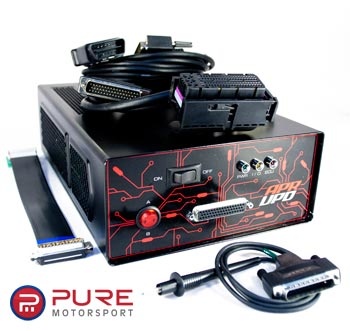

DirectPort Programming is another industry first brought to you by APR. DirectPort Programming is also referred to as "flashing" the ECU with the new operating software contained in APR's ECU Upgrade. No more soldering additional hardware to expensive and delicate factory electronics. DirectPort Programming facilitates ease of installation and offers new features to give you even more flexibility with your OEM ECU. DirectPort Programming is only available by bringing your car to an APR dealer or by mailing your ECU to APR directly.

Security, Warranty and Money Back Guarantee

• All APR ECU Upgrades are fully encrypted to prevent theft of our valuable and proprietary coding information by lesser companies.
• All APR ECU Upgrades include a limited lifetime warranty against defects in the software and to provide free updates and reflashes as they become available. Installation may be additional and is not included in the warranty.
• All APR ECU Upgrades offer a 30 day money back guarantee with no questions asked. If for any reason you are unhappy with your APR ECU Upgrade you may return the upgrade to your place of purchase for a full refund provided you are within a 30 day period from your time of initial purchase. Installation is not included in the guarantee and is at the discretion of the place of install.

NOTE
This item is only eligible for in-store installation.
Please contact us to schedule an appointment or for more information.
