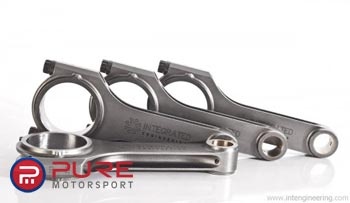

SOLD AS SET OF FOUR

For Use in:

VW / Audi 1.8T early engines with 20mm wrist pins:
AEB, AGU, AMU, APX, ATC, AWD, BEA
VW / Audi all 1.8T engines
VW / Audi FSI 2.0T engines
VW MKII 8V engines with 144mm length rods
VW / Audi 16V engines

(more engine codes may be available, check with us to verify engine code).
(These require trimming the oil pump drive gear on early 1.8T 058 engines for clearance. Please inquire).

Introduction

Integrated Engineering is proud to manufacture the highest quality connecting rods available for European applications, at a reasonable price. This is accomplished through careful design, manufacturing, and quality control processes. With hundreds and hundreds of sets of VW and Audi connecting rods in stock, we are your specialist supplier with the inventory and knowledge to make your project a success.

Quality through design

One of the hallmarks of a high quality connecting rod is its strength to weight ratio. Anyone can create an extremely strong rod out of a huge chunk of steel. Creating one with a reasonable weight that works well in today's high rpm european applications, and holds up to a lifetime of torture is another story. In order to create this balance of strength and light weight, an H beam design is utlized. The design is validated and optimized using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible. The material specification and treatment is equally important to producing a quality connecting rod with a high strength to weight ratio. Our steel rods feature 4340 Chrome Moly steel, formed into shape using a 2 piece forging for the highest possible fatigue life. The material is multi-stage heat treated to ensure the highest possible fatigue strength as well as good dimensional stability. This feature ensures that our big ends stay round for a lifetime of bearing trouble free service. Following this pattern of high quality, ARP 2000 rod bolts are standard in all of our applications, while they are an upgrade at additional cost in many of our competitors.

Features

• 2 Piece Forgings from Vacuum Drawn 4340 Chrome Moly Steel
• Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
• Fully Machined and Shot Peened
• H beam Design
• Tolerances as tight as .0003 ground on Sunnen brand equipment
• Standard ARP2000 Rod Bolts
• Computer Optimized Design
• Magnaflux Inspected
• Dimensionally Inspected
• Packed in balanced sets /- 1 gram.
• All this at a price point that yields market leading value
• Combination tested to over 700HP

Dimensions

144mm Center to Center
20mm Wrist pin fit
3/8 ARP 2000 Rod Bolts
